# Geospatial Studio Dataset Factory APIs

What?

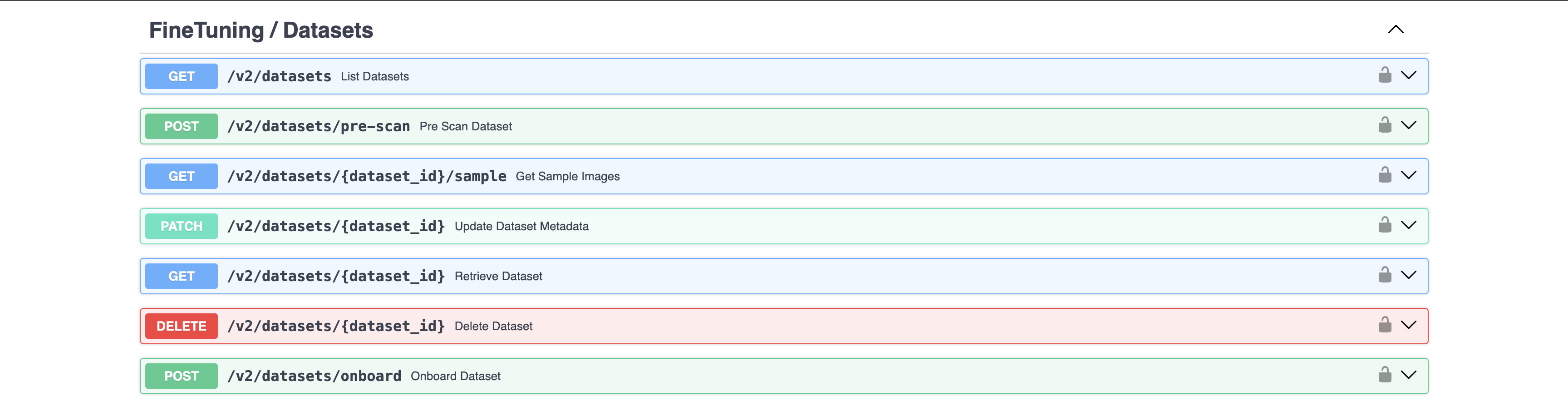

The Dataset Factory allows users to bring their curated geospatial datasets to the Studio to fine-tune their models. The dataset-factory endpoints allow users to onboard and delete datasets. In addition, some endpoints allow users to view their datasets' metadata. The front-end also uses the dataset-factory API to provide users with a preview of their datasets.

Where?

We recommend that users utilize the Geospatial Studio UI instead for the more user-friendly and appealing interface.

plot

How?

To onboard a dataset to the Dataset Factory, the user needs to provide the following:

Field Data Type Example Requirements
dataset_name String (space characters allowed) UK 2013-2019 Flood Data A descriptive name which helps the user recognize the dataset would suffice
data_sources List [{"bands": [{"index":"0", "band_name": "VV (Gray)", "description": ""},{"index":"1", "band_name": "VH", "description": ""}],"connector": "sentinelhub","collection": "s1_grd","modality_tag": "S1GRD","align_dates": "true","file_suffix": "_S1Hand.tif","scaling_factor": [1, 1]}] A list containing information about each data source for the dataset. Including the data connector (e.g sentinelhib or nasa_earthdata), and information about the collections (collection name, bands, scaling factor, etc)
label_categories List of dictionaries [{ "id": "0", "name": "Floods", "description": "Flooding assets" }] Each dictionary in the list contains id, name, and description, where id and label are required fields, and description is not required
dataset_url String https://ibm.box.com/shared/static/t682cwbcc5np6db9c6uj35lu2559ij26.zip Any link which would allow direct download of a zip file.
description String (space characters allowed) 2013-2019 Image from Sentinel Hub. The tiff files are 512 x 512 and containing 6 bands Something descriptive would suffice
training_data_suffix List of strings (no space allowed) _imageHand.tif This is the suffix which the training image files have. This allows the onboarding pipeline to correctly find all images from all directories.
label_suffix String (no space allowed) _labelHand.tif This is the suffix which all the label files have. This allows the onboarding pipeline to correctly find all labels from all directories. The training_data_suffix and label_suffix much be distinct.
purpose String Regression The available options are Regression, Segmentation, Generate, NER, Classify, Other
training_params Dictionary Configure training parameters for the model

An example payload could look like the following:

{
    "dataset_name": "Sentinel Flood Multimodal",
    "data_sources": [
        {
            "bands": [
                {"index":"0", "band_name": "Coastal_aerosol", "description": ""},
                {"index":"1", "band_name": "Blue", "RGB_band": "B", "description": ""},
                {"index":"2", "band_name": "Green", "RGB_band": "G", "description": ""},
                {"index":"3", "band_name": "Red", "RGB_band": "R", "description": ""},
                {"index":"4", "band_name": "05_-_Vegetation_Red_Edge", "description": ""},
                {"index":"5", "band_name": "06_-_Vegetation_Red_Edge", "description": ""},
                {"index":"6", "band_name": "07_-_Vegetation_Red_Edge", "description": ""},
                {"index":"7", "band_name": "08_-_NIR", "description": ""},
                {"index":"8", "band_name": "08A_-_Vegetation_Red_Edge", "description": ""},
                {"index":"9", "band_name": "09_-_Water_vapour", "description": ""},
                {"index":"10", "band_name": "11_-_SWIR", "description": ""},
                {"index":"11", "band_name": "12_-_SWIR", "description": ""},
                {"index":"12", "band_name": "Cloud_Probability", "description": ""}
            ],
            "connector": "sentinelhub",
            "collection": "s2_l2a",
            "modality_tag": "S2L1C",
            "file_suffix": "_S2Hand.tif",
            "scaling_factor": [1, 1, 1, 1, 1, 1]
        },
        {
            "bands": [
                {"index":"0", "band_name": "VV (Gray)", "description": ""},
                {"index":"1", "band_name": "VH", "description": ""}
            ],
            "connector": "sentinelhub",
            "collection": "s1_grd",
            "modality_tag": "S1GRD",
            "align_dates": "true",
            "file_suffix": "_S1Hand.tif",
            "scaling_factor": [1, 1]
        }
    ],
    "label_categories": [
        {"id": "0", "name": "No Floods", "description": "Flooding assets"},
        {"id": "1", "name": "Floods", "description": "Flooding assets"}
    ],
    "dataset_url": "https://s3.us-east.cloud-object-storage.appdomain.cloud/geospatial-studio-example-data/sen1floods11_v1.1.tar.gz",
    "description": "Flood data from places",
    "label_suffix": "_LabelHand.tif",
    "purpose": "Segmentation"
}

Dataset Requirements

To successfully onboard a curated dataset, the dataset should meet the following requirements:

  1. The dataset if contained in a .zip files, and a direct download link is available and correctly enterd in the onboarding payload

  2. The corresponding image and label files should have the same filesname, excluding the suffixes. As an example, subsetted_512x512_HLS.S30.T10SEH.2018190.v1.4_merged.tif and subsetted_512x512_HLS.S30.T10SEH.2018190.v1.4.mask.tif are a corresponding pair, where subsetted_512x512_HLS.S30.T10SEH.2018190.v1.4 is the matching filename body, and _merged.tif and .mask.tif are the suffixes. If the names don't match, onboarding won't proceed.

  3. For any dataset for Segmentation purpose, please make sure 2 categories are included in the label_categories field in the onboarding payload.
