Geospatial Studio Fine-tuning APIs

The Geospatial Tuning Studio provides users with a no-code way to create fine-tuned models for specific applications. The user will select the type of task they wish to carry out, the tuning dataset and the backbone model they wish to start from.

Workflow

The fine-tuning process involves the following key steps:

Select or create a Fine-Tuning dataset in the Dataset Factory service: choose or upload geospatial data with corresponding labels that will be used for training.
Select a tuning task type (e.g Regression or Segmentation) from a template and configure model parameters if need be or use defaults.
Specify the base-model, downstrean task and tuning parameters: configure parameters related to the foundation model and the fine-tuning process.
Submit a tuning job: Launch a tuning job that will adapt the model to your specified downstream task.
Monitor training and performance: Track the progress of the fine-tuning process by monitor training metrics.
Deploy model for inferencing: After fine-tuning, the output is a model checkpoint and configuration files. With these files, the model can be deployed to an inference service for real-world applications.

Dataset Options

To fine-tune a model for a downstream task, you need a labeled fine-tuning dataset. The Geospatial Tuning Studio provides multiple ways to acquire or upload a dataset through the dataset-factory.

Dataset Factory Docs

Fine-Tuning Components

The fine-tuning process involves four essential components:

Base Models / Foundation Models: Pre-trained models that serve as the starting point for fine-tuning. These models have been trained on large geospatial datasets and are adaptable to specific tasks.
Downstream Tasks: These are specific tasks for which the base model is fine-tuned. Examples include tasks like flooding, fire-scars, land classification and other geospatial analyses.
Datasets: A Curated set of geospatial data with corresponding labels required for fine-tuning.
Tunes: Tunes represent the fine-tuning process itself, where the model is trained on the specified dataset and task parameters. Each tune results in a fine-tuned version of the model.

API Overview

These APIs allow users to programmatically interact with the Geospatial Tuning Studio for a variety of tasks.

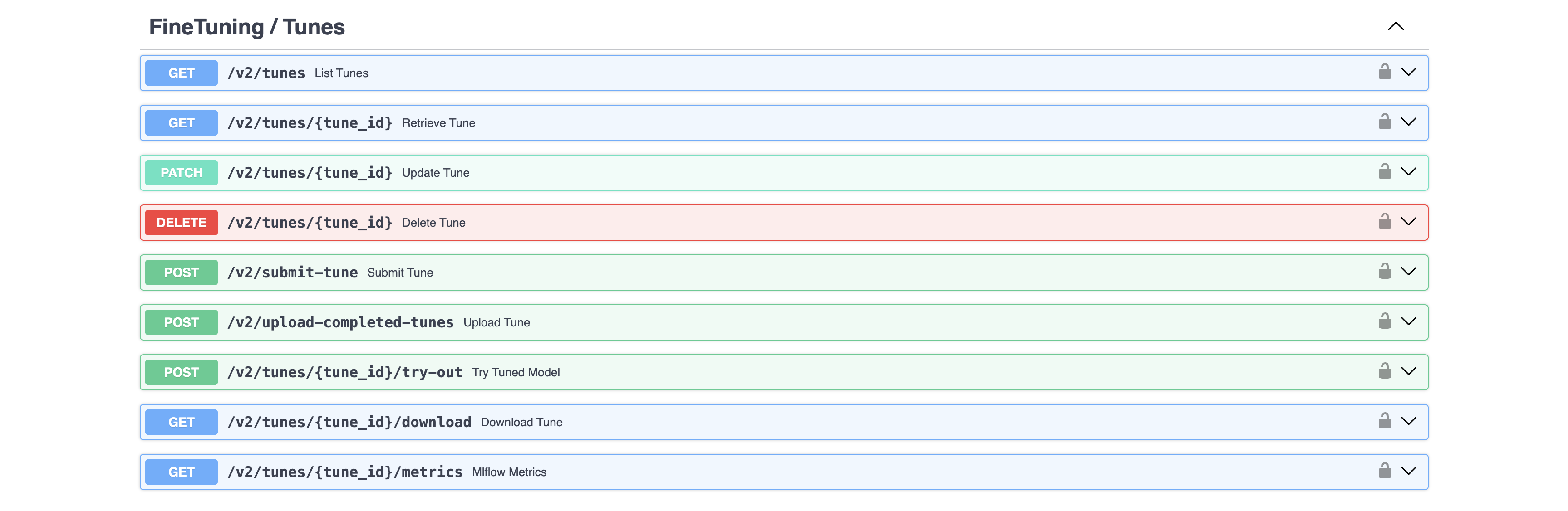

Tunes

Tuning geospatial models

List Tunes

GET /v2/tunes

Lists all fine tuning jobs available to the logged in user.

Example

Curl

curl -X GET /v2/tunes \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseQuery Parameters

200 Response

{
"total_records": 0,
"page_count": 0,
"results": [
    {
    "id": "string",
    "active": true,
    "created_by": "",
    "created_at": "2025-08-27T07:18:25.834Z",
    "updated_at": "2025-08-27T07:18:25.834Z",
    "name": "string",
    "description": "string",
    "task": {
        "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
        "name": "string"
    },
    "dataset_id": "string",
    "base_model": {
        "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
        "name": "string"
    },
    "mcad_id": "",
    "status": "",
    "latest_chkpt": "",
    "logs": "",
    "metrics": ""
    }
]
}

Name	In	Type	Required	Description
name	query	any	false	Filter by the name of the tune.
status	query	any	false	Filter by the status of the tune.
limit	query	any	false	The maximum number of items to retrieve.
skip	query	any	false	The number of items to skip.

Retrieve Tune

GET /v2/tunes/{tune_id}

Retrieves a single fine-tuning job by the tune_id

Example

Curl

curl -X GET /v2/tunes/{tune_id} \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success Response

200 Response

{
"id": "string",
"active": true,
"created_by": "",
"created_at": "2025-08-27T07:20:03.484Z",
"updated_at": "2025-08-27T07:20:03.484Z",
"name": "string",
"description": "string",
"task": {
    "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
    "name": "string"
},
"dataset_id": "string",
"base_model": {
    "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
    "name": "string"
},
"mcad_id": "",
"status": "",
"latest_chkpt": "",
"logs": "string",
"metrics": [],
"config_json": {},
"progress": {
    "additionalProp1": {}
},
"logs_presigned_url": "string",
"tuning_config": "string",
"tuning_config_presigned_url": "string",
"train_options": {}
}

Submit Tune

POST /v2/submit-tune

Example

Curl

curl -X POST /v2/submit-tune \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}' \
-d '{
"name": "string",
"description": "string",
"dataset_id": "string",
"base_model_id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"tune_template_id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"model_parameters": {},
"train_options": {}
}'

Parameters and Responses

Success ResponseOther Responses

201 Response

{
"tune_id": "string",
"mcad_id": "string",
"status": "Pending",
"message": {
    "additionalProp1": {}
    }
}

Status	Meaning	Description	Schema
201	Created	Successful Response	TuneSubmitOut
422	Unprocessable Entity	Validation Error	HTTPValidationError

Update Tune

PATCH /v2/tunes/{tune_id}

Updates tune metadata fields.

Example

Curl

curl -X PATCH /v2/tunes/{tune_id} \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'
-d '{
    "name": "segmentation-test-1",
    "description": "Segmentation demo example"
}

Parameters and Responses

200 Response

Success ResponseQuery Parameters

{
    "message": "Tune successfully updated."
}

Status	Meaning	Description	Schema
200	OK	Successful Response	Inline
422	Unprocessable Entity	Validation Error	HTTPValidationError

Delete Tune

DELETE /v2/tunes/{tune_id}

Example

Curl

curl -X DELETE /v2/tunes/{tune_id} \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Status	Meaning	Description	Schema
204	No Content	Successful Response	None
422	Unprocessable Entity	Validation Error	HTTPValidationError

Try out Tuned Model

POST /v2/tunes/{tune_id}/try-out

Example

Curl

curl -X POST /v2/tunes/{tune_id}/try-out \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}' \
-d '
{
"model_display_name": "",
"description": "try-out",
"location": "string",
"geoserver_layers": {
    "additionalProp1": {}
},
"spatial_domain": {
    "bbox": [
    [
        0
    ]
    ],
    "polygons": [
    "string"
    ],
    "tiles": [
    "string"
    ],
    "urls": [
    "string"
    ]
},
"temporal_domain": [
    "string"
],
"model_input_data_spec": [
    {
    "additionalProp1": {}
    }
],
"data_connector_config": [
    {
    "connector": "string",
    "collection": "string",
    "bands": [
        {
        "additionalProp1": {}
        }
    ],
    "scaling_factor": [
        0
    ],
    "additionalProp1": {}
    }
],
"geoserver_push": [
    {
    "workspace": "string",
    "layer_name": "string",
    "display_name": "string",
    "filepath_key": "string",
    "file_suffix": "string",
    "geoserver_style": "string",
    "additionalProp1": {}
    }
]
}'

Parameters and Responses

Success ResponseOther Responses

201 Response

{
"spatial_domain": {
    "bbox": [
    [
        0
    ]
    ],
    "polygons": [
    "string"
    ],
    "tiles": [
    "string"
    ],
    "urls": [
    "string"
    ]
},
"temporal_domain": [
    "string"
],
"fine_tuning_id": "string",
"model_display_name": "string",
"description": "string",
"location": "string",
"geoserver_layers": {
    "additionalProp1": {}
},
"demo": {
    "additionalProp1": {}
},
"model_id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"inference_output": {
    "additionalProp1": {}
},
"id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"active": true,
"created_by": "",
"created_at": "2025-08-27T07:24:07.317Z",
"updated_at": "2025-08-27T07:24:07.317Z",
"status": "string",
"tasks_count_total": 0,
"tasks_count_success": 0,
"tasks_count_failed": 0
}

Status	Meaning	Description	Schema
200	OK	Successful Response	Inline
422	Unprocessable Entity	Validation Error	HTTPValidationError

Download Tunes

GET /v2/tunes/{tune_id}/download

Example

Curl

curl -X GET /v2/tunes/{tune_id}/download \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseOther Responses

200 Response

{
    "id": "string",
    "name": "string",
    "description": "string",
    "config_url": "string",
    "checkpoint_url": "string"
}

Status	Meaning	Description	Schema
200	OK	Successful Response	TuneDownloadOut
422	Unprocessable Entity	Validation Error	HTTPValidationError

Get Tune Metrics

GET /v2/tunes/{tune_id}/metrics

Example

Curl

curl -X GET /v2/tunes/{tune_id}/metrics \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success Response

200 Response

{
    "id": "string",
    "status": "FINISHED",
    "epochs": "string",
    "metrics": [
        {}
    ],
    "details": "string"
}

Other Responses

Status	Meaning	Description	Schema
200	OK	Successful Response	TunedModelMlflowMetrics
422	Unprocessable Entity	Validation Error	HTTPValidationError

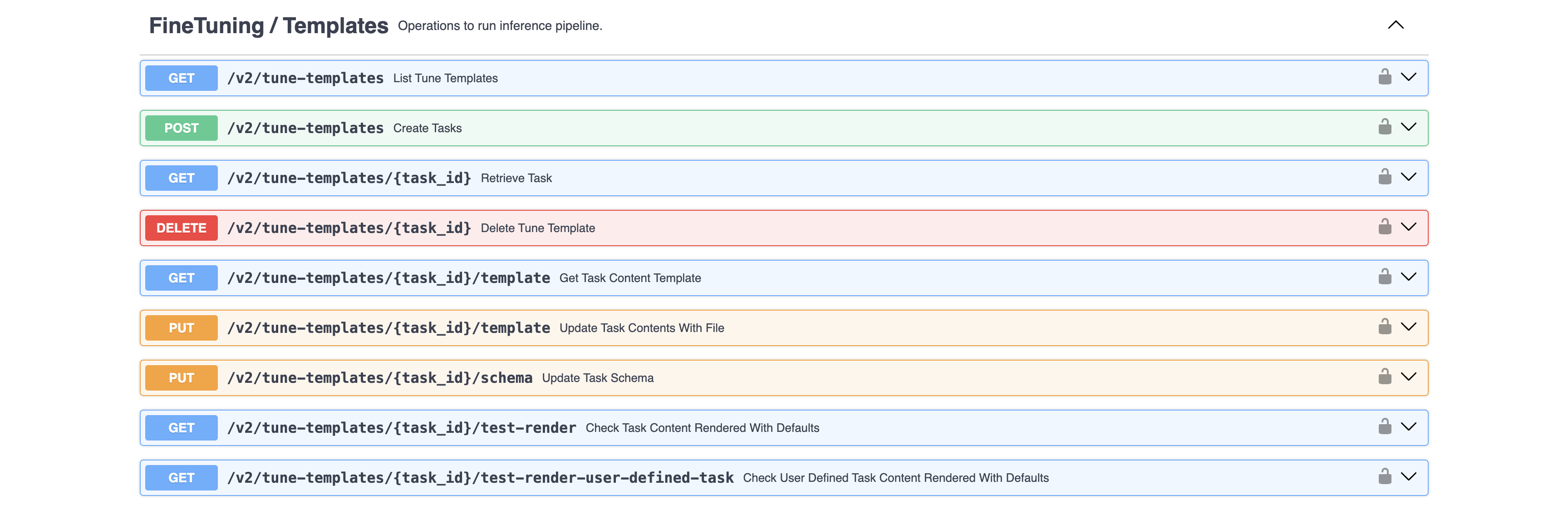

Templates

Managing available tuning tasks (i.e. experiment templates)

List Templates

GET /v2/tune-templates

Example

Curl

curl -X GET /v2/tune-templates \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseQuery ParametersOther Responses

200 Response

        {
"total_records": 0,
"page_count": 0,
"results": [
    {
    "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
    "active": true,
    "created_by": "",
    "created_at": "2025-08-27T07:26:11.139Z",
    "updated_at": "2025-08-27T07:26:11.139Z",
    "name": "string",
    "description": "string",
    "purpose": "string",
    "extra_info": {
        "additionalProp1": {}
    }
    }
]
}

Name	In	Type	Required	Description
name	query	any	false	Filter by the name of the tune.
limit	query	any	false	The maximum number of items to retrieve.
skip	query	any	false	The number of items to skip.

Status	Meaning	Description	Schema
200	OK	Successful Response	TasksOut
422	Unprocessable Entity	Validation Error	HTTPValidationError

Create Tune Template

POST /v2/tune-templates

Example

Curl

curl -X POST /v2/tune-templates \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}' \
-d '{
    "name": "string",
    "description": "string",
    "content": "string",
    "model_params": {},
    "extra_info": {
        "runtime_image": ""
    },
    "dataset_id": "string"
}

Parameters and Responses

Success ResponseOther Responses

200 Response

{
    "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08"
}

Status	Meaning	Description	Schema
201	Created	Successful Response	Inline
422	Unprocessable Entity	Validation Error	HTTPValidationError

Retrieve Task

GET /v2/tune-templates/{task_id}

Example

Curl

curl -X GET /v2/tune-templates/{task_id} \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseOther Responses

{
    "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08",
    "active": true,
    "created_by": "",
    "created_at": "2019-08-24T14:15:22Z",
    "updated_at": "2019-08-24T14:15:22Z",
    "name": "string",
    "description": "string",
    "model_params": {},
    "extra_info": {
    "additionalProp1": {}
    }
}

Status	Meaning	Description	Schema
200	OK	Successful Response	TaskOut
422	Unprocessable Entity	Validation Error	HTTPValidationError

Render Tuning Template

GET /v2/tune-templates/{task_id}/test-render

Check Task Content Rendered With Defaults

Example

Curl

curl -X GET /v2/tune-templates/{task_id}/test-render \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseQuery ParametersOther Responses

"string"

Name	In	Type	Required	Description
task_id	path	any	true	none
dataset_id	query	any	true	none
base_model	query	any	true	none

Status	Meaning	Description	Schema
200	OK	Successful Response	Inline
422	Unprocessable Entity	Validation Error	HTTPValidationError

Base models

Available foundation model bases

List Base Models

GET /v2/base-models

Example

Shell

# You can also use wget
curl -X GET /v2/base-models \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseQuery ParametersOther Responses

{
    "total_records": 0,
    "page_count": 0,
    "results": [
        {
            "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08",
            "active": true,
            "created_by": "",
            "created_at": "2019-08-24T14:15:22Z",
            "updated_at": "2019-08-24T14:15:22Z",
            "name": "string",
            "description": "string",
            "checkpoint_filename": "string",
            "model_params": {}
            }
        ]
    }

Name	In	Type	Required	Description
name	query	any	false	Filter by the name of the tune.
limit	query	any	false	The maximum number of items to retrieve.
skip	query	any	false	The number of items to skip.

Status	Meaning	Description	Schema
200	OK	Successful Response	BaseModelsOut
422	Unprocessable Entity	Validation Error	HTTPValidationError

Create Base Model

POST /v2/base-models

Example

Shell

# You can also use wget
curl -X POST /v2/base-models \
-H 'Content-Type: application/json' \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'
-d '
{
"name": "string",
"description": "string",
"checkpoint_filename": "",
"model_params": {
    "backbone": "",
    "patch_size": 16,
    "num_layers": 12,
    "embed_dim": 768,
    "num_heads": 12,
    "tile_size": 1,
    "tubelet_size": 1,
    "model_category": "prithvi"
}
}'

Parameters and Responses

Success ResponseOther Responses

"string"

Status	Meaning	Description	Schema
201	Created	Successful Response	Inline
422	Unprocessable Entity	Validation Error	HTTPValidationError

Retrieve Base Model

GET /v2/base-models/{base_id}

Example

Curl

# You can also use wget
curl -X GET /v2/base-models/{base_id} \
-H 'Accept: application/json' \
-H 'Authorization: Bearer {access-token}'

Parameters and Responses

Success ResponseOther Responses

{
    "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08",
    "active": true,
    "created_by": "",
    "created_at": "2019-08-24T14:15:22Z",
    "updated_at": "2019-08-24T14:15:22Z",
    "name": "string",
    "description": "string",
    "checkpoint_filename": "string",
    "model_params": {}
}

Status	Meaning	Description	Schema
200	OK	Successful Response	BaseModelOut
422	Unprocessable Entity	Validation Error	HTTPValidationError
